Forestry Home >> Forestry >> Mechnical Auto-Feed Chipper

Perfect for those clean –ups after a storm, pruning or just processing general gardening wastes. Creating mulch for garden plants and trees for conserving water.


Features:
1.At the heart of the BX chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 10” diameter tree trunks.

The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper


2. The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper.

3Exit chute. The chute swivels 360 degrees and the top deflector adjusts the distance.

Optional parts :with long tail

Feature--BX92S

Uses:
Perfect for those clean-ups after a storm,pruning or just processing general gardening wastes

Creating mulch for garden plants and trees for conserving water

Feature:

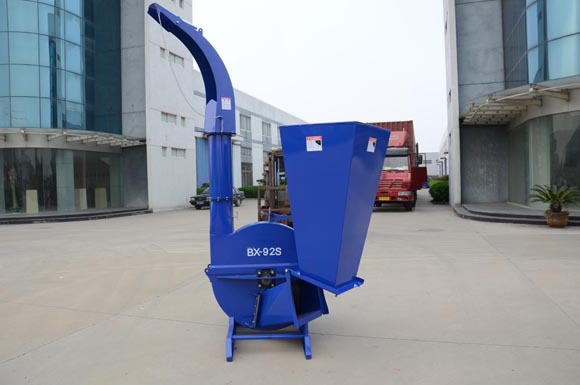

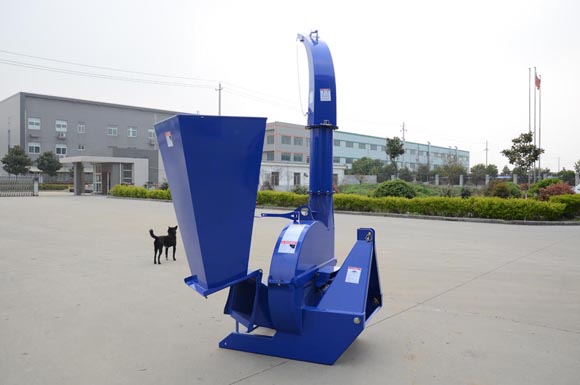

The BX-92S is a very simple and at the same time efficient and sturdy wood chipper.

The wood chipper comes delivered complete with P.T.O. A shear pin has also been built into one side of the P.T.O., which is a safety precaution as it serves as a predetermined breaking point in the event of blockages or overloading. This means that even larger tractors with more than 100 HP can be used with no problem. You should have an engine power output of at least 30 HP. The P.T.O. must have a speed of 540 rpm.

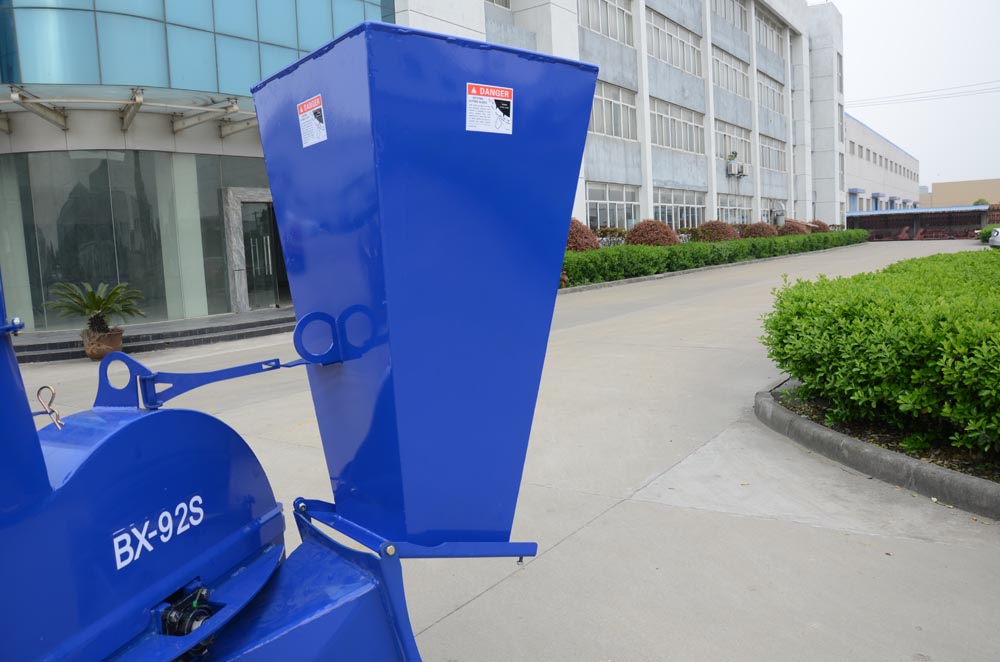

The feed hopper has an opening of 63.5 x 63.5 cm; at the bottom the opening measures 25.5 x 38. cm. A maximum diameter of 25.5 cm can be shredded. Many competitors list the maximum shredding diameter as the measurement of the bottom of the feed hopper, however, this value is unrealistic and can trigger the safety mechanism in the P.T.O. Softer woods with a width up to 38 cm can be shredde,d although such diameters are usually processed to firewood and not chipped.


The BX-92S has a very sturdy finish! The material strength of the sheet metal in the weight-bearing area are 10 and 5 mm. At the hopper and the non-weight-bearing parts it is 2 mm.

The hopper can be folded upward with ease for transport and is secured using a cotter pin.

The unit has been constructed in a very maintenance-friendly way; you can open the flywheel cover completely by unscrewing just one screw, giving you access to the 4 cutting blades. These cutting blades are double-side,d so that they can be turned around if required. The flywheel has a net-weight of 50 kg and has fitted wings, which produces the incredibly powerful suction which ultimately expels the chippings out of the chute. Thanks to this powerful suction, a blockage of the shredding unit is virtually impossible.

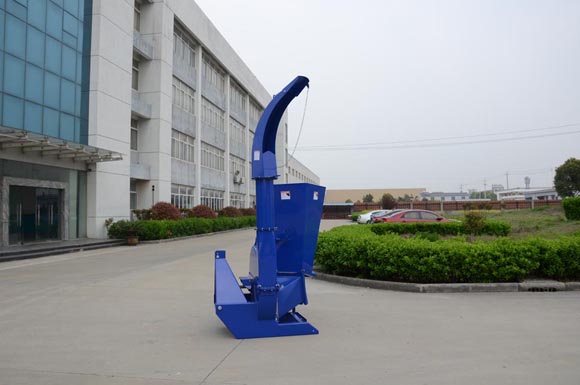

The chute has a height of 220 cm (plus the height of the lower link) and can be rotated 360 degrees. We are also able to additionally deliver a 50 cm chute extension upon request. This enables easy direction of the chippings onto a tractor trailer or directly into Big Bags. The ejection angle can also be changed. The BX-92S can expel the chippings up to 10 m.

The shredder has been conceived to be attached to 3 point linkage and can be used from Cat. I.

Technica data

• For 65-150 HP tractors (48-110 kW)
• Maximum quantity
of chippable material: 20 cm a day
• Hydraulic rollers supply system
• Supply opening: 25 cm x 34 cm
• Rotor dimensions: 91 cm
• Rotor weight: 125 Kg
• Universal 3-point hitch Cat. I
• 4 case-hardened blades
• Main hopper opening: 635X635 mm
• Trailing cannon rotation: 360°
• Unloading height: 200 cm
